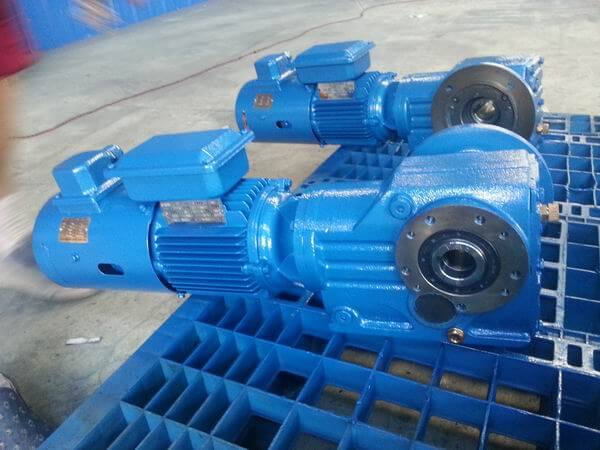

Helical Bevel Gearbox with YEJ/YVPEJ brake motor
Parameter teknis:
| Model kasedhiya | KA37, KA47, KA57, KA67, KA77, KA87, KA97, KA107, KA127, KA157, KA187, KA47RF37, KA57RF37, KA67RF37, KA77RF37, KA87RF37, KA97RF37, KA107RF37, KA127RF77, KA127RF87,KA157RF97, KA167RF97, KA187RF97, KA157RF107, KA167RF107, KA187RF107 |
| rasio | 5.36~179.86 (maksimal: 13461) |
| daya input | 0.12 ~ 200 kW |
| torsi maksimum | 200~50000 N.m |
DESKRIPSI
K series helical-bevel gear units are right-angle gear units with high degree of efficiency and gearing with high fatigue strength.
The compact design of all our gear units is most obvious in our helical-bevel gear units. This property is particularly interesting, for example, for machine applications with limited space available. Here, you need powerful drive technology with a compact design. This is just the right environment for our helical-bevel gear units with a torque range from 80 to 50,000 Nm. With their high efficiency in both directions of rotation and at any input speed, these right-angle gear units are very energy-efficient. Their high-endurance gearing is wear-free and lasts a gear unit’s lifetime. For precise positioning tasks, you can use the K series gear units with reduced backlash.
FLK Bevel Geared Motors are the best choice wherever high speed ratios and torques are required. Our drive systems, consisting of an electric motor and a bevel gear unit, are especially suitable for use on conveyor belts as well as in intralogistics and packaging technology.
KARAKTERISTIK
- Ngadopsi desain optimized, kombinasi modul.
- Output sudut tengen, aplikasi sudhut.
- Iku nganggo teknologi mecah majeng lan teknologi modifikasi wangun, kang nduweni kapasitas prewangan dhuwur, operasi dipercaya lan kurang gangguan.
- Kinerja sealing apik, cocok kanggo macem-macem kahanan kerja.
- Efisiensi transmisi dhuwur lan hemat energi.
- Bisa digabungake karo macem-macem motor kanthi jarak rasio sing luwih akeh
- Biaya-efektif lan gampang kanggo njaga.
Formulir produk
- Tahap Transmisi: 3 tahap.
- Formulir Majelis: Kaki dipasang, Flange dipasang, B14 flange cilik dipasang, lengen torsi dipasang.
- Output Sudut Kanan: Poros padat, Poros berongga (kunci datar, shrink disk, spline involute), Poros solid splined
Data Teknis
- Size: KA37~KA187
- Data Teknis (N·m): 200~50000
- Rasio Gear: 5.36 ~ 179.86 (imax: 13461)
- Daya Input (kW): 0.12~200
Rating Daya Input lan Torsi Output
|
Ukuran |
37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 | 167 | 187 |
|
Struktur |
K.. KOWE…KF..KAF..KAZ…KAT.. KAB.. |
|||||||||||
|
Rating daya input (kw) |
0.18-3 |
0.18-3 | 0.18-5.5 | 0.18-5.5 | 0.37-11 | 0.75-22 | 1.1-30 | 3-45 | 7.5-90 | 11-160 | 11-200 |
18.5-200 |
|
rasio |
5.36-106.38 |
5.81-131.87 | 6.57-145.15 | 7.14-144.79 | 7.22-175.45 | 7.19-192.27 | 8.95-175.47 | 8.74-141.93 | 8.68-146.07 | 12.66-150.03 | 17.35-164.44 |
17.97-178.37 |
| Torsi maksimum (N.m) | 200 | 400 | 600 | 820 | 1550 | 2700 | 4300 | 8000 | 13000 | 18000 | 32000 |
50000 |
Model sing kasedhiya:
|
Versi
|
Ukuran
|
||||||
|
37
|
47
|
57
|
67
|
77
|
87
|
||
|
K..
|
Foot-mounted helical bevel gearbox
|
K37
|
K47
|
K57
|
K67
|
K77
|
K87
|
|
ING..B
|
Foot-mounted / Hollow shaft helical bevel gearbox
|
KA37B
|
KA47B
|
KA57B
|
KA67B
|
KA77B
|
KA87B
|
|
KV..B
|
Foot-mounted / Hollow shaft / Splined hollow shaft helical bevel gearbox
|
KV37B
|
KV47B
|
KV57B
|
KV67B
|
KV77B
|
KV87B
|
|
KH..B
|
Foot-mounted / Hollow shaft / Shrink disc helical bevel gearbox
|
KH37B
|
KH47B
|
KH57B
|
KH67B
|
KH77B
|
KH87B
|
|
KF..
|
B5 flange-mounted helical bevel gearbox reducer
|
KF37
|
KF47
|
KF57
|
KF67
|
KF77
|
KF87
|
|
tuku..
|
B5 Flange-mounted / Hollow shaft helical bevel gearbox
|
KAF37
|
KAF47
|
KAF57
|
KAF67
|
KAF77
|
KAF87
|
|
KVF..
|
B5 Flange-mounted / Hollow shaft / Splined hollow shaft helical bevel gearbox
|
KVF37
|
KVF47
|
KVF57
|
KVF67
|
KVF77
|
KVF87
|
|
KHF..
|
B5 Flange-mounted / Hollow shaft / Shrink disc helical bevel gearbox
|
KHF37
|
KHF47
|
KHF57
|
KHF67
|
KHF77
|
KHF87
|
|
THE..
|
Hollow shaft helical bevel gearbox
|
KA37
|
KA47
|
KA57
|
KA67
|
KA77
|
KA87
|
|
KV..
|
Hollow shaft / Splined hollow shaft helical bevel gearbox
|
KV37
|
KV47
|
KV57
|
KV67
|
KV77
|
KV87
|
|
KH..
|
Hollow shaft / Shrink disc helical bevel gearbox
|
KH37
|
KH47
|
KH57
|
KH67
|
KH77
|
KH87
|
|
KAT..
|
Hollow shaft / Torque arm helical bevel gearbox
|
KAT37
|
KAT47
|
KAT57
|
KAT67
|
KAT77
|
KAT87
|
|
KAZ..
|
B14 Flange-mounted / Hollow shaft helical bevel gearbox
|
KAZ37
|
KAZ47
|
KAZ57
|
KAZ67
|
KAZ77
|
KAZ87
|
|
KVZ..
|
B14 Flange-mounted / Hollow shaft / Splined hollow shaft helical bevel gearbox
|
KVZ37
|
KVZ47
|
KVZ57
|
KVZ67
|
KVZ77
|
KVZ87
|
|
KHZ..
|
B14 Flange-mounted / Hollow shaft / Shrink disc helical bevel gearbox
|
KHZ37
|
KHZ47
|
KHZ57
|
KHZ67
|
KHZ77
|
KHZ87
|
|
Versi
|
Ukuran
|
||||||
|
97
|
107
|
127
|
157
|
167
|
187
|
||
|
K..
|
Foot-mounted right angle helical bevel gear reducer
|
K97
|
K107
|
K127
|
K157
|
K167
|
K187
|
|
ING..B
|
Foot-mounted / Hollow shaft right angle helical bevel gear reducer
|
KA97B
|
KA107B
|
KA127B
|
KA157B
|
KA167B
|
KA187B
|
|
KV..B
|
Foot-mounted / Hollow shaft / Splined hollow shaft helical bevel gearbox
|
KV97B
|
KV107B
|
KV127B
|
KV157B
|
KV167B
|
KV187B
|
|
KH..B
|
Foot-mounted / Hollow shaft / Shrink disc helical bevel gear box
|
KH97B
|
KH107B
|
KH127B
|
KH157B
|
KH167B
|
KH187B
|
|
KF..
|
B5 Flange-mounted helical bevel gear box
|
KF97
|
KF107
|
KF127
|
KF157
|
KF167
|
KF187
|
|
tuku..
|
B5 Flange-mounted / Hollow shaft helical bevel gearbox reducer
|
KAF97
|
KAF 107
|
CAF127
|
KAF157
|
KAF167
|
KAF187
|
|
KVF..
|
B5 Flange-mounted / Hollow shaft / Splined hollow shaft helical bevel gearbox
|
KVF97
|
KVF107
|
KVF127
|
KVF157
|
KVF167
|
KVF187
|
|
KHF..
|
B5 Flange-mounted / Hollow shaft / Shrink disc helical bevel gearbox
|
KHF97
|
KHF107
|
KHF127
|
KHF157
|
KHF167
|
KHF187
|
|
THE..
|
Hollow shaft helical bevel gearbox
|
KA97
|
KA107
|
KA127
|
KA157
|
KA167
|
KA187
|
|
KV..
|
Hollow shaft / Splined hollow shaft helical bevel gearbox
|
KV97
|
KV107
|
KV127
|
KV157
|
KV167
|
KV187
|
|
KH..
|
Hollow shaft / Shrink disc helical bevel gearbox
|
KH97
|
KH107
|
KH127
|
KH157
|
KH167
|
KH187
|
|
KT..
|
Hollow shaft / Torque arm helical bevel gearbox
|
KT97
|
KT107
|
KT127
|
KT157
|
KT167
|
KT187
|
|
KAZ..
|
B14 Flange-mounted / Hollow shaft helical bevel gearbox
|
KAZ97
|
KAZ107
|
KAZ127
|
KAZ157
|
KAZ167
|
KAZ187
|
|
KVZ..
|
B14 Flange-mounted / Hollow shaft / Splined hollow shaft helical bevel gearbox
|
KVZ97
|
KVZ107
|
KVZ127
|
KVZ157
|
KVZ167
|
KVZ187
|
|
KHZ..
|
B14 Flange-mounted / Hollow shaft / Shrink disc helical bevel gearbox
|
KHZ97
|
KHZ107
|
KHZ127
|
KHZ157
|
KHZ167
|
KHZ187
|
K37 gearbox, K47 gearbox, K57 gearbox, K67 gearbox, K77 gearbox, K87 gearbox, K97 gearbox, K107 gearbox, K127 gearbox, K157 gearbox, K187 gearbox,
KF37 gear box, KF47 gearbox, KF57 gear reducer, KF67 gearbox, KF77 gearbox, KF87 gearbox, KF97 gearbox, KF107 gearbox, KF127 gearbox, KF157 gearbox, KF187 gearbox,
KA37 gearbox, KA47 gearbox, KA57 gearbox, KA67 gearbox, KA77 gearbox, KA87 gearbox, KA97 gearbox, KA107 gearbox, KA127 gearbox, KA157 gearbox, KA187 gearbox,
KAT37 gearbox, KAT47 gearbox, KAT57 gearbox, KAT67 gearbox, KAT77 gearbox, KAT87 gearbox, KAT97 gearbox, KAT107 gearbox, KAT127 gearbox, KAT157 gearbox, KAT187 gearbox,
KAF37 gearbox, KAF47 gearbox, KAF57 gearbox, KAF67 gearbox, KAF77 gearbox, KAF87 gearbox, KAF97 gearbox, KAF107 gearbox, KAF127 gearbox, KAF157 gearbox, KAF187 gearbox,
KAZ37 gearbox, KAZ47 gearbox, KAZ57 gearbox, KAZ67 gearbox,KAZ77 gearbox, KAZ87 gearbox, KAZ97 gearbox, KAZ107 gearbox, KAZ127 gearbox, KAZ157 gearbox, KAZ187 gearbox,
KA: poros berongga output helical bevel gear reducer
KF: gearbox bevel heliks sing dipasang ing flange
KAF: flensa-mounted hollow shaft output helical bevel gear box
KAZ: B14 flange dipasang poros kothong output helical bevel gearmotor
KAT: torsi-lengan-dipasang poros kothong output helical bevel geared motor
KAB: gearbox reduksi bevel heliks sing dipasang ing sikil
KVZ: Splined hollow shaft karo B14 flange helical bevel motor reducer
Jinis lan sebutan
- Reducer kacepetan motor sing disambungake langsung: K-A-B-97-62.55-Y-5,5KW-4P-NZQ-M1-J1-ZZ-THE-S
- Reducer kacepetan motor sing disambung langsung (jinis kombinasi): K-A-B-97-RF-F-57-62.55-Y-5,5KW-4P-M1-J1-ZZ-THE-S
- Kanthi motor lan flange input: K-A-B-97-62.55-AM132B5-Y-5,5KW-4P-M1-J1-ZZ-THE-S
- Input flange-dipasang, tanpa motor: K-A-B-97-62.55-AM132B5-M1-J1-ZZ-THE-S
- Kanthi poros input: K-A-B-97-62.55-AD4-M1-Z-S
Cathetan:
AM132B5: Dimensi flange IEC (waca katalog kita)
AD4: Poros input (AD1, AD2, AD3, AD4, AD5, AD6, AD7, AD8)
Kode Motor :
* Y: Motor 3 fase standar
*YB: Motor anti bledosan
* YEJ: Motor rem
*YD: Motor multi-kacepetan
* YVP: Motor frekuensi variabel
* YCT: motor pangaturan kacepetan elektromagnetik
* YR: Crane lan motor metalurgi
*YVPEJ: Frekuensi variabel lan motor rem
*YG: Roller meja motor
*YGPEJ: Frekuensi variabel lan rem lan rol motor meja
Posisi Pemasangan
Posisi Box Terminal Motor
Gambar Struktur
Desain Modular
Gambar Produk
Aplikasi:
Produk kasebut akeh digunakake ing industri ringan, panganan, bir lan omben-omben, industri kimia, eskalator, peralatan panyimpenan otomatis, konstruksi, mesin, metalurgi wesi lan baja, nggawe kertas, mesin panel kayu, manufaktur mobil, mesin tembakau, konservasi banyu, percetakan lan kemasan, farmasi, tekstil, bahan bangunan, logistik lan mesin feed liyane, perlindungan lingkungan.
