S series Worm Helical Gearbox with IEC Flange

모델	S37, S47, S57, S67, S77, S87, S97, S67RF37, S77RF37, S87RF37, S97RF37
비율	6.8 ~ 288
입력 전원	0.12 ~ 22 kW
출력 토크	11 ~ 4650 N.m

카탈로그 다운로드

설명

S series Worm Helical Gearbox is different from ordinary worm gearbox ,the input side adopts a pair of helical reducing to come true reducing rotary speed and reducing hot’s creating, meanwhile, it can gain larger transmission ratio. the structure are reasonable, can combine with R series inline helical gearbox, MB series variable speed gearbox, satisfy different clients’ using demands.

The design of helical worm gearbox is based on modular design. The helical worm gear reducer adopts a combination of helical gear and worm gear. So, it has higher efficiency and strength than single-stage aluminum worm gearbox. Because of the outstanding efficiency, the helical worm gear units can be used in every industrial sector and customized to meet individual torque and speed requirements. The gear ratios afforded by a single-stage helical-worm gear and the low noise level during running make the transmission device ideal for low-cost solutions in simple applications.

형질

최적화된 디자인, 모듈 조합을 채택합니다.
Right angle output, with self-locking function under certain conditions, small vibration.
높은 베어링 용량, 안정적인 작동 및 저소음을 갖춘 고급 연삭 기술과 형상 수정 기술을 채택합니다.
우수한 밀봉 성능으로 다양한 작업 조건에 적합합니다.
높은 전송 효율과 에너지 절약.
비용 효율적이고 유지 관리가 쉽습니다.

제품형태

Transmission Stage: 2 stage.
Assembly Form: Foot mounted, Flange mounted, B14 small flange mounted, torque arm mounted.
Right Angle Output: Solid shaft, Hollow shaft ( flat key, shrink disk, involute spline), Splined solid shaft

기술 데이터

Size: SF37~SF97
Technical Data(N·m): 90~4000
Gear Ratio: 6.8~286.4（imax:26688）
Input Power(kW)：0.12~22

입력 전력 정격 및 최대 토크

크기	S37	S47	S57	S67	S77	S87	S97
구조	S SA SF SAF SAT SAZ
입력 전력 정격(kw)	0.18-0.75	0.18-1.5	0.18-3	0.25- 5.5	0.55-7.5	0.75-15	1.5-22
비율	10.27-152	11.46-244.74	10.78-196.21	11.5-227.20	9.96-241.09	11.83-222	12.75-230.48
최대 토크(N.m)	90	170	295	520	1270	2280	4000

AVAILABLE MODELS

Version		크기
Version		37	47	57	67	77	87	97
S..	Foot-mounted worm helical gear unit	S37	S47	S57	S67	S77	S87	S97
SF..	B5 Flange-mounted helical worm gearbox	SF37	SF47	SF57	SF67	SF77	SF87	SF97
SAF..	B5 Flange-mounted / Hollow shaft worm helical gearmotor	SAF37	SAF47	SAF57	SAF67	SAF77	SAF87	SAF97
SHF..	B5 Flange-mounted / Hollow shaft / Shrink disc worm helical reducer	SHF37	SHF47	SHF57	SHF67	SHF77	SHF87	SHF97
SA..	Hollow shaft helical worm speed reducer	SA37	SA47	SA57	SA67	SA77	SA87	SA97
SH..	Hollow shaft / Shrink disc worm helical gear unit	SH37	SH47	SH57	SH67	SH77	SH87	SH97
SAT..	Hollow shaft / Torque arm worm helical speed reducer	SAT37	SAT47	SAT57	SAT67	SAT77	SAT87	SAT97
SAZ..	B14 Flange-mounted / Hollow shaft worm helical gear reducer	SAZ37	SAZ47	SAZ57	SAZ67	SAZ77	SAZ87	SAZ97
SHZ..	B14 Flange-mounted / Hollow shaft / Shrink disc helical worm reducer	SHZ37	SHZ47	SHZ57	SHZ67	SHZ77	SHZ87	SHZ97

Type and Designation: (Worm Helical Gearmotor)

직결 모터 감속기: S–H–에프–97–62.55–와이–5.5KW–4P–M1–J1–ZZ–AZ
Directly-connected motor Speed reducer(Combination type): S–H–에프–97–RF–에프–57–62.55–와이–5.5KW–4P–M1–J1–ZZ–AZ
With motor and input flange: S–H–에프–97–62.55–AM132B5–와이–5.5KW–4P–M1–J1–ZZ–AZ
Input flange-mounted, without motor: S–H–에프–97–62.55–AM132B5–M1–J1–ZZ–AZ
With input shaft: S–H–에프–97–62.55–AD4–M1–ZZ–AZ

메모:
AM132B5: IEC 플랜지 치수(당사 카탈로그 참조)
AD4: 입력축(AD1, AD2, AD3, AD4, AD5, AD6, AD7, AD8)

모터 코드:

*Y: 표준 3상 모터
*YB: 방폭형 모터
* YEJ: 브레이크 모터
*YD: 다단속 모터
* YVP: 가변 주파수 모터
*YCT: 전자기 속도 조절 모터
*YR: 크레인 및 야금 모터
*YVPEJ: 가변 주파수 및 브레이크 모터
*YG: 롤러 테이블 모터
*YGPEJ: 가변 주파수, 브레이크 및 롤러 테이블 모터

Mounting Position (Worm Helical Gearmotor)

모터 단자함 위치

구조도

MODULAR DESIGN

제품 사진

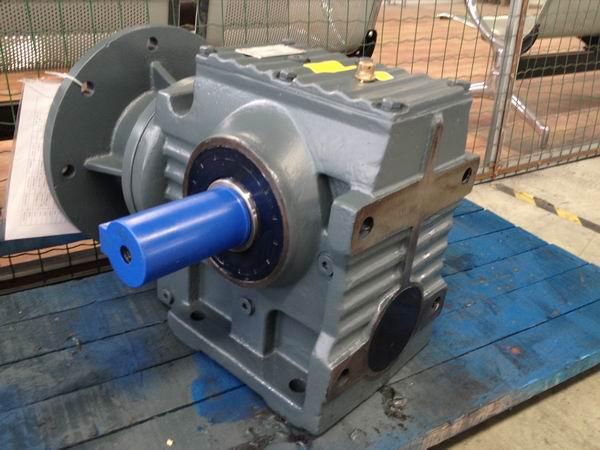

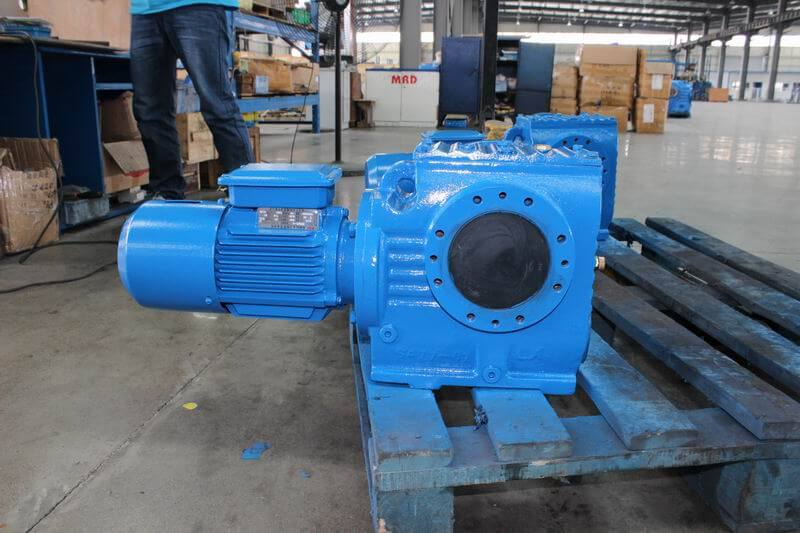

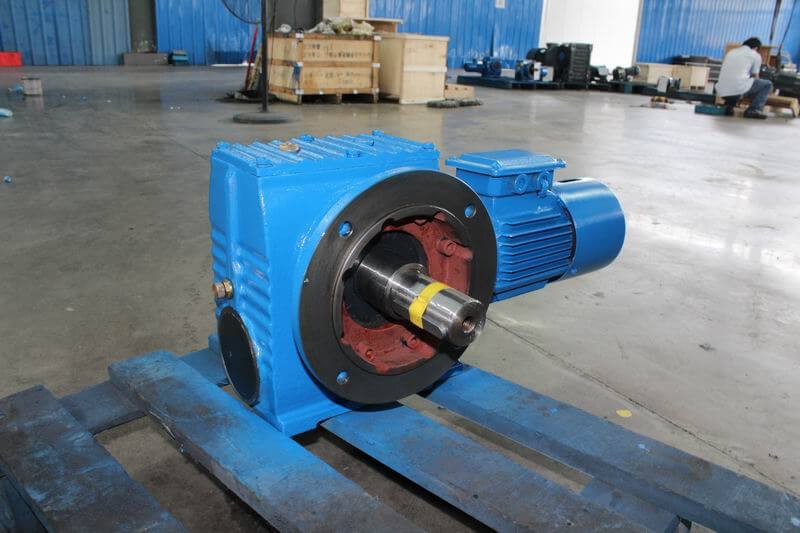

S57 S67 S77 S87 S97 worm helical gear reducer

SA87 SA77 SA67 SA57 Hollow shaft worm helical gearboxes

애플리케이션:

S series worm helical speed reducers are widely used in light industry, food, beer and beverage, chemical industry, escalators, automatic storage equipment, construction, machinery, iron and steel metallurgy, paper-making, wood-based panel machinery, automobile manufacturing, tobacco machinery, water conservancy, printing and packaging, pharmaceutical, textile, building materials, logistics, feed machinery, environmental protection and other fields.
