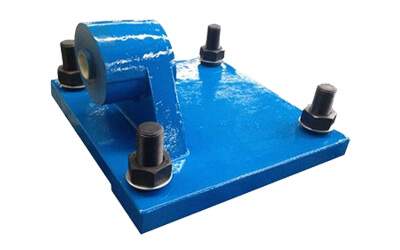

KAT series Hollow Shaft Gearbox and motor with Torque Arm
Technesch Parameteren:
| Verfügbar Modeller | KAT37, KAT47, KAT57, KAT67, KAT77, KAT87, KAT97, KAT107, KAT127, KAT157, KAT187 |
| Verhältnis | 5.36 ~ 179.86 (imax: 13461) |
| Input Muecht | 0.12 ~ 200 kW |
| Max Dréimoment | 200~50000 N.m |
Charakteristiken
- Adoptéiert optiméiert Design, Modulkombinatioun.
- Recht Wénkel Ausgang, breet Applikatioun.
- Et adoptéiert fortgeschratt Schleiftechnologie a Formmodifikatiounstechnologie, déi héich Lagerkapazitéit, zouverléisseg Operatioun a geréng Geräischer huet.
- Gutt Dichtungsleistung, gëeegent fir eng breet Palette vun Aarbechtskonditiounen.
- Héich Transmissioun Effizienz an Energie spueren.
- Kann mat verschiddene Motore mat méi breet Verhältnisser kombinéiert ginn
- Käschten-effikass an einfach ze pflegen.
Produit Form
- Transmissioun Etapp: 3 Etapp.
- Montageform: Foussmontéiert, Flangemontéiert, B14 kleng Flangemontéiert, Dréimomentarm montéiert.
- Rietswénkel Ausgang: zolidd Schaft, Huel Schaft (flaach Schlëssel, Schrumpf Scheif, involut Spline), Splined massiv Schaft
Technesch Donnéeën
- Size: KAT37~KAT187
- Technesch Donnéeën (N·m): 200~50000
- Gearverhältnis: 5.36 ~ 179.86 (imax: 13461)
- Input Power (kW): 0,12 ~ 200
Input Power Bewäertung an Ausgangsmoment
|
Gréisst |
37 | 47 | 57 | 67 | 77 | 87 | 97 | 107 | 127 | 157 | 167 | 187 |
|
Struktur |
K.. DIR…KF..KAF..KAZ…KAT..KAB.. |
|||||||||||
|
Eingangsleistung Bewäertung (kw) |
0.18-3 |
0.18-3 | 0.18-5,5 | 0.18-5,5 | 0.37-11 | 0.75-22 | 1.1-30 | 3-45 | 7,5-90 | 11-160 | 11-200 |
18.5-200 |
|
Verhältnis |
5.36-106.38 |
5.81-131.87 | 6.57-145.15 | 7.14-144.79 | 7.22-175.45 | 7.19-192.27 | 8.95-175.47 | 8.74-141.93 | 8.68-146.07 | 12.66-150.03 | 17.35-164.44 |
17.97-178.37 |
| Max Dréimoment (N.m) | 200 | 400 | 600 | 820 | 1550 | 2700 | 4300 | 8000 | 13000 | 18000 | 32000 |
50000 |
Verfügbar Modeller:
|
Versioun
|
Gréisst
|
||||||
|
37
|
47
|
57
|
67
|
77
|
87
|
||
|
K..
|
Foot-mounted helical bevel gear unit
|
K37
|
K47
|
k57
|
k67
|
k77
|
k87
|
|
DEN..B
|
Foot-mounted / Hollow shaft helical bevel gear unit
|
KA37B
|
KA47B
|
KA57B
|
KA67B
|
KA77B
|
KA87B
|
|
KV..B
|
Foot-mounted / Hollow shaft / Splined hollow shaft helical bevel gear unit
|
KV37B Eng
|
KV47B Eng
|
KV57B Eng
|
KV67B Eng
|
KV77B Eng
|
KV87B Eng
|
|
KH..B
|
Foot-mounted / Hollow shaft / Shrink disc helical bevel gear unit
|
KH37B
|
KH47B
|
KH57B
|
KH67B
|
KH77B
|
KH87B
|
|
KF..
|
B5 flange-mounted helical bevel gear unit
|
KF 37
|
KF 47
|
KF57
|
KF67
|
KF77
|
KF87
|
|
KAF..
|
B5 Flange-mounted / Hollow shaft helical bevel gear unit
|
KAF 37
|
KAF 47
|
KAF57
|
KAF67
|
KAF 77
|
KAF 87
|
|
KVF..
|
B5 Flange-mounted / Hollow shaft / Splined hollow shaft helical bevel gear unit
|
KVF 37
|
KVF 47
|
KVF 57
|
KVF 67
|
KVF 77
|
KVF 87
|
|
KHF..
|
B5 Flange-mounted / Hollow shaft / Shrink disc helical bevel gear unit
|
KHF 37
|
KHF 47
|
KHF57
|
KHF 67
|
KHF77
|
KHF87
|
|
DEN..
|
Hollow shaft helical bevel gear unit
|
KA37
|
KA47
|
KA57
|
KA67
|
KA77
|
KA87
|
|
KV..
|
Hollow shaft / Splined hollow shaft helical bevel gear unit
|
KV 37
|
KV 47
|
KV 57
|
KV 67
|
KV 77
|
KV 87
|
|
KH..
|
Hollow shaft / Shrink disc helical bevel gear unit
|
KH37
|
KH47
|
KH57
|
KH67
|
KH77
|
KH87
|
|
KAT..
|
Hollow shaft / Torque arm helical bevel gear unit
|
KAT 37
|
KAT47
|
KAT57
|
KAT67
|
KAT77
|
KAT87
|
|
KAZ..
|
B14 Flange-mounted / Hollow shaft helical bevel gear unit
|
KAZ37
|
KAZ47
|
KAZ57
|
KAZ67
|
KAZ77
|
KAZ87
|
|
KVZ..
|
B14 Flange-mounted / Hollow shaft / Splined hollow shaft helical bevel gear unit
|
KVZ 37
|
KVZ47
|
KVZ 57
|
KVZ 67
|
KVZ77
|
KVZ87
|
|
KHZ..
|
B14 Flange-mounted / Hollow shaft / Shrink disc helical bevel gear unit
|
KHZ37
|
KHZ47
|
KHZ57
|
KHZ67
|
KHZ77
|
KHZ87
|
|
Versioun
|
Gréisst
|
||||||
|
97
|
107
|
127
|
157
|
167
|
187
|
||
|
K..
|
Foot-mounted helical bevel gear unit
|
k97
|
K107
|
K127
|
K157
|
K167
|
K187
|
|
DEN..B
|
Foot-mounted / Hollow shaft helical bevel gear unit
|
KA97B
|
KA107B
|
KA127B
|
KA157B
|
KA167B
|
KA187B
|
|
KV..B
|
Foot-mounted / Hollow shaft / Splined hollow shaft helical bevel gear unit
|
KV97B Eng
|
KV 107B
|
KV 127B
|
KV 157 B
|
KV 167B
|
KV 187 B
|
|
KH..B
|
Foot-mounted / Hollow shaft / Shrink disc helical bevel gear unit
|
KH97B
|
KH107B
|
KH127B
|
KH157B
|
KH167B
|
KH187B
|
|
KF..
|
B5 Flange-mounted helical bevel gear unit
|
KF97
|
KF 107
|
KF 127
|
KF 157
|
KF 167
|
KF 187
|
|
KAF..
|
B5 Flange-mounted / Hollow shaft helical bevel gear unit
|
KAF 97
|
KAF 107
|
CAF 127
|
KAF 157
|
KAF 167
|
KAF 187
|
|
KVF..
|
B5 Flange-mounted / Hollow shaft / Splined hollow shaft helical bevel gear unit
|
KVF 97
|
KVF 107
|
KVF 127
|
KVF 157
|
KVF 167
|
KVF 187
|
|
KHF..
|
B5 Flange-mounted / Hollow shaft / Shrink disc helical bevel gear unit
|
KHF 97
|
KHF 107
|
KHF 127
|
KHF 157
|
KHF 167
|
KHF 187
|
|
DEN..
|
Hollow shaft helical bevel gear unit
|
KA97
|
KA107
|
KA127
|
KA157
|
KA167
|
KA187
|
|
KV..
|
Hollow shaft / Splined hollow shaft helical bevel gear unit
|
KV 97
|
KV 107
|
KV 127
|
KV 157
|
KV 167
|
KV 187
|
|
KH..
|
Hollow shaft / Shrink disc helical bevel gear unit
|
KH97
|
KH107
|
KH127
|
KH157
|
KH167
|
KH187
|
|
KT..
|
Hollow shaft / Torque arm helical bevel gear unit
|
KT97
|
KT 107
|
KT127
|
KT 157
|
KT167
|
KT 187
|
|
KAZ..
|
B14 Flange-mounted / Hollow shaft helical bevel gear unit
|
KAZ97
|
KAZ 107
|
KAZ 127
|
KAZ 157
|
KAZ 167
|
KAZ 187
|
|
KVZ..
|
B14 Flange-mounted / Hollow shaft / Splined hollow shaft helical bevel gear unit
|
KVZ 97
|
KVZ 107
|
KVZ 127
|
KVZ 157
|
KVZ 167
|
KVZ 187
|
|
KHZ..
|
B14 Flange-mounted / Hollow shaft / Shrink disc helical bevel gear unit
|
KHZ97
|
KHZ 107
|
KHZ 127
|
KHZ 157
|
KHZ167
|
KHZ187
|
K37 gear unit, K47 gear unit, K57 gear unit, K67 gear unit, K77 gear unit, K87 gear unit, K97 gear unit, K107 gear unit, K127 gear unit, K157 gear unit, K187 gear unit,
KF37 gear unit, KF47 gear unit, KF57 gear unit, KF67 gear unit, KF77 gear unit, KF87 gear unit, KF97 gear unit, KF107 gear unit, KF127 gear unit, KF157 gear unit, KF187 gear unit,
KA37 gear unit, KA47 gear unit, KA57 gear unit, KA67 gear unit, KA77 gear unit, KA87 gear unit, KA97 gear unit, KA107 gear unit, KA127 gear unit, KA157 gear unit, KA187 gear unit,
KAT37 gear unit, KAT47 gear unit, KAT57 gear unit, KAT67 gear unit, KAT77 gear unit, KAT87 gear unit, KAT97 gear unit, KAT107 gear unit, KAT127 gear unit, KAT157 gear unit, KAT187 gear unit,
KAF37 gear unit, KAF47 gear unit, KAF57 gear unit, KAF67 gear unit, KAF77 gear unit, KAF87 gear unit, KAF97 gear unit, KAF107 gear unit, KAF127 gear unit, KAF157 gear unit, KAF187 gear unit,
KAZ37 gear unit, KAZ47 gear unit, KAZ57 gear unit, KAZ67 gear unit, KAZ77 gear unit, KAZ87 gear unit, KAZ97 gear unit, KAZ107 gear unit, KAZ127 gear unit, KAZ157 gear unit, KAZ187 gear unit,
KA: Huelwellenausgang helical Schräggearreduzéierer
KF: flangemontéierte massive Schaftausgang helical Schräg Gearbox
KAF: Flange-mounted huel Aarsch Ausgang helical bevel gearbox
KAZ: B14 Flangemontéiert Huelwelleausgang helical Schräg Gearmotor
KAT: Dréimomentarm-montéiert huel Aarsch Ausgang helical bevel geared Motor
KAB: Fouss-montéiert huel Aarsch Ausgang helical Bevel Reduktioun Gearbox
KVZ: Splined huel Schaft mat B14 Flange Helical Bevel Motor Reduzéierer
Typ an Bezeechnung
- Direkt verbonne Motor Geschwindegkeet Reduktioun: K-A-B-97-62,55-Y-5,5 kW an-4 p-NZQ-M1-J1-ZZ-DEN-S
- Direkt verbonne Motor Geschwindegkeetsreduktioun (Kombinatiounstyp): K-A-B-97-RF-F-57-62,55-Y-5,5 kW an-4 p-M1-J1-ZZ-DEN-S
- Mat Motor an Input Flange: K-A-B-97-62,55-AM132B5-Y-5,5 kW an-4 p-M1-J1-ZZ-DEN-S
- Eingangsflens montéiert, ouni Motor: K-A-B-97-62,55-AM132B5-M1-J1-ZZ-DEN-S
- mit Eingangswelle: K-A-B-97-62,55-AD 4-M1-Z-S
Notiz:
AM132B5: Dimensioun vun IEC Flange (kuckt w.e.g. an eisem Katalog)
AD4: Input Aarsch (AD1, AD2, AD3, AD4, AD5, AD6, AD7, AD8)
Motor Code:
*Y: Standard 3-Phas Motore
*YB: Explosiounsbeständeg Motoren
* YEJ: Bremsmotoren
*YD: Multi-Vitesse Motore
* YVP: Variabel Frequenz Motore
*YCT: Elektromagnetesch Geschwindegkeetsreguléierungsmotoren
*YR: Kran- a Metallurgiemotoren
*YVPEJ: Variabel Frequenz a Bremsmotoren
*YG: Roller Dësch Motore
* YGPEJ: Variabel Frequenz a Brems- an Roller Dësch Motore
Montéierung Positioun
Motor Terminal Box Positioun
Struktur Zeechnen
Modular Design
Produit Biller
Applikatioun:
The products are widely used in light industry, food, beer and beverage, chemical industry, escalators, automatic storage equipment, construction, machinery, iron and steel metallurgy, paper-making, wood-based panel machinery, automobile manufacturing, tobacco machinery, water conservancy, printing and packaging, pharmaceutical, textile, building materials, logistics, feed machinery, environmental protection and other fields.
